T624ITRS

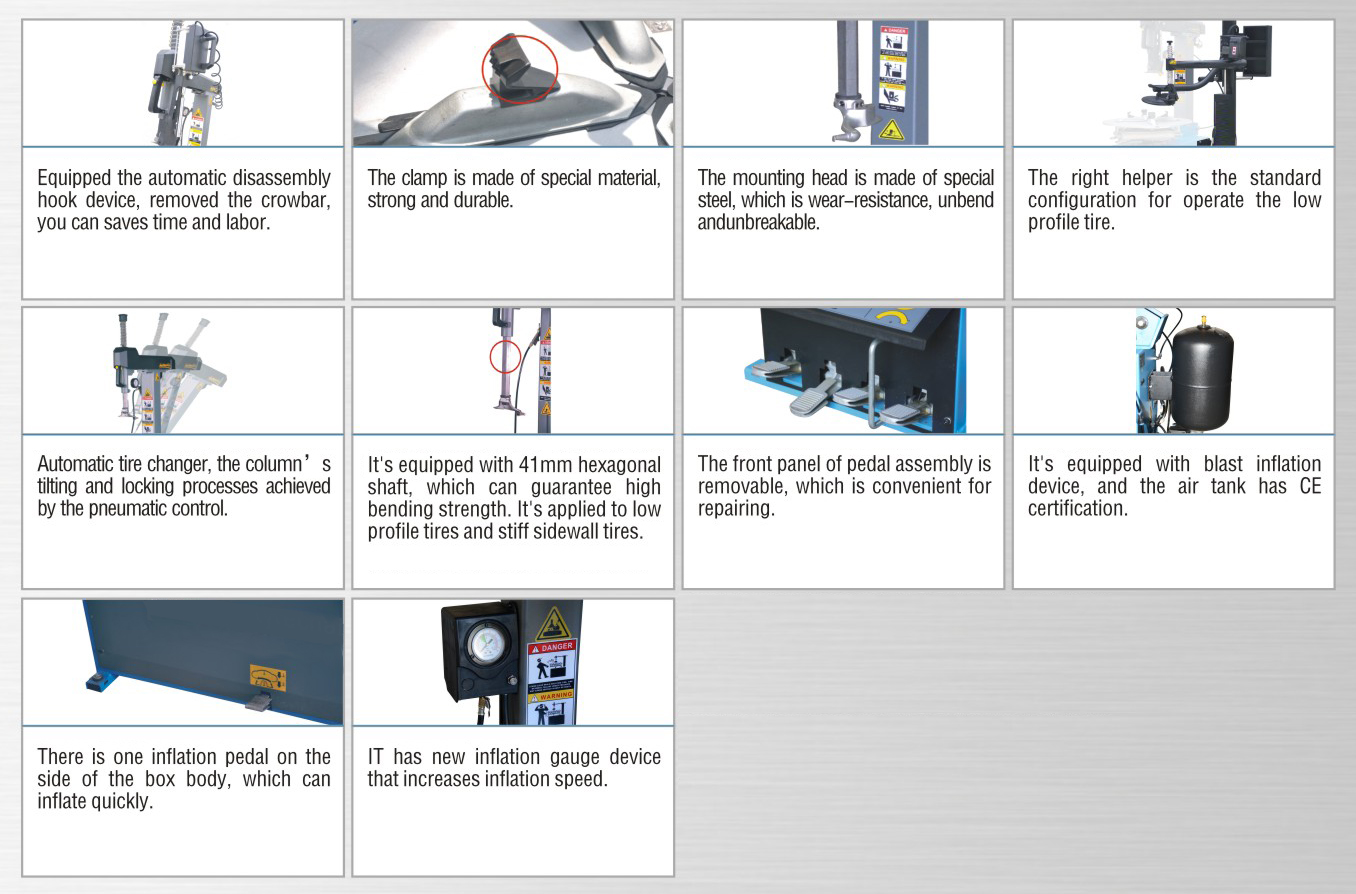

Features

* The customer can optional equip the plastic tool head according to the
requirement.
* The universal switch is 40A with a pure silver touching point, it can bear great
load with a long using life.
* The protective sheath of the bead breaker is optional.

Technical Specification

Rim Clamping from Outside	11″ - 20″
Rim Clamping from Inside	12″ - 24″
Maximum Wheel Diameter	950 mm
Wheel Width	3″ - 12″
Operating Pressure	8 - 10 bar
Motor power	0.75 / 1.1 kW
Noise Level	＜75dB
Net Weight (Machine(automatic hook+helper))	244 KG + 71 KG = 315 KG
Gross Weight (Machine(automatic hook+helper))	268 KG + 92 KG = 360 KG
Partially disassemblyed packing(Machine)	980×760×1010 mm
Partially disassemblyed packing(helper)	1280×550×450 mm
Volume	1.07m³
Quantity in 20" Container	26
Quantity in 40" Container	60
