SCISSOR LIFT
FS4431
Features
*Hidden structure of lengthened broad pallet, make lift run smoothly and synchronously, convenient for maintenance of vehicle underneath

*Imported hydraulic, pneumatic and electric components, with stable and reliable equipment
*Pneumartic two-tooth self-locking against pipe explosion, released automaticly when lowering
*Super-friction sliding block with oil-free
*Super thin structure without digging ground pits, convenient for driving on and off the lift
*Controlled by computer IC Board without misoperation
*Overbeam protective mechamism for preventing vehicle being damaged due to over-lifting, it will prolong the working life of hydraulic unit and cylinders

Technical Specification
Lifting Capacity
3.5 Ton

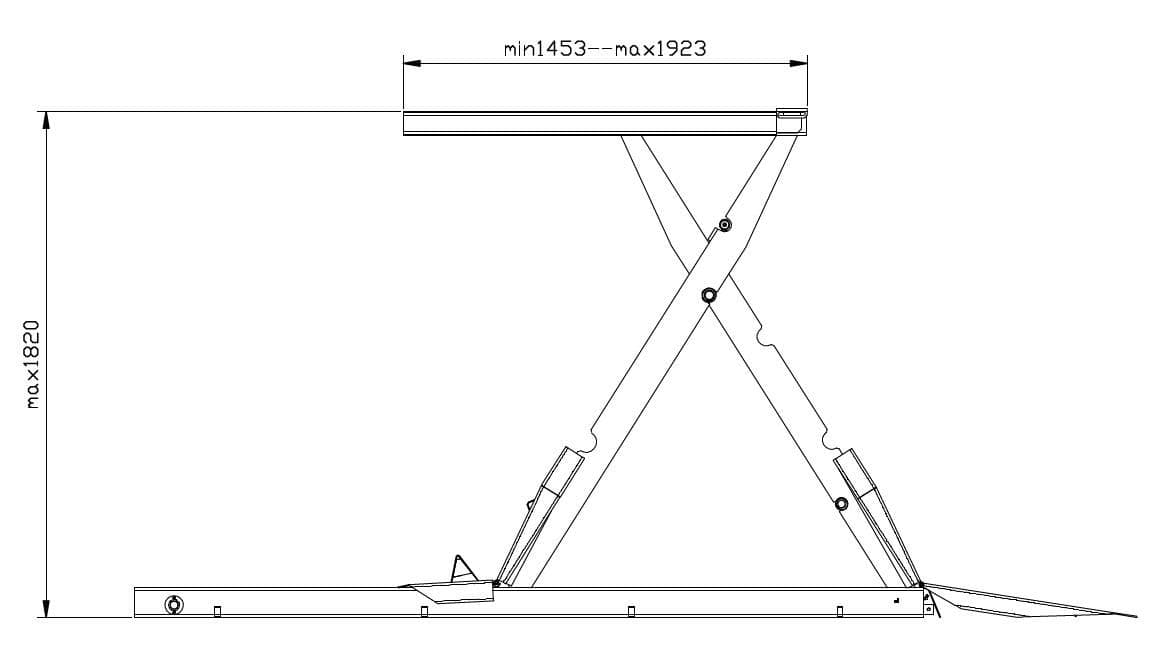

Max. Lift.Height
1820 mm

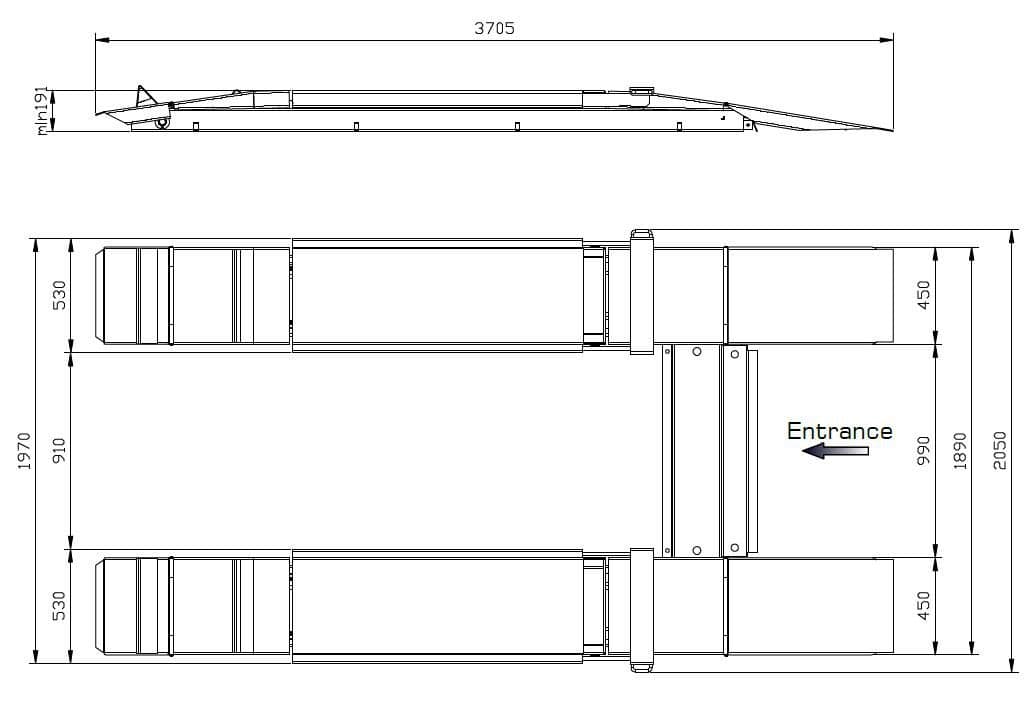

Total Width
2050 mm
Total Length
3705 mm
Power Supply
380 V
Gas Source

6-8 kg/cm3

Net weight
940 kgs
Gross weight
984 kgs
