* Manual mechanical lock release system

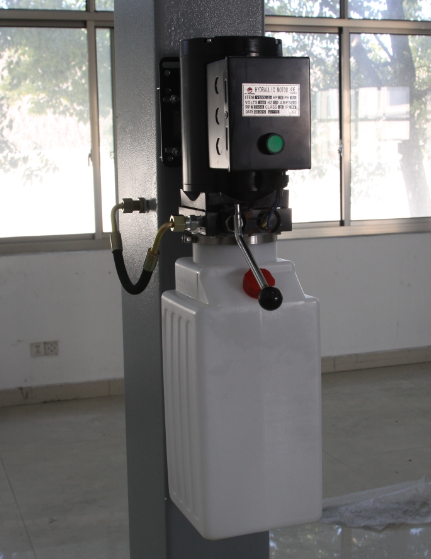

* Driven by dual hydraulic cylinders,make it ascent and descent smoothly
* Self-locking protetive with double safety
* Chain-style elevating system
* Balanced by steel wire rope
* Asymmetrical design make it possible to open vehicle doors within narrow width
between columns
* Slider block easier to be replaced
|

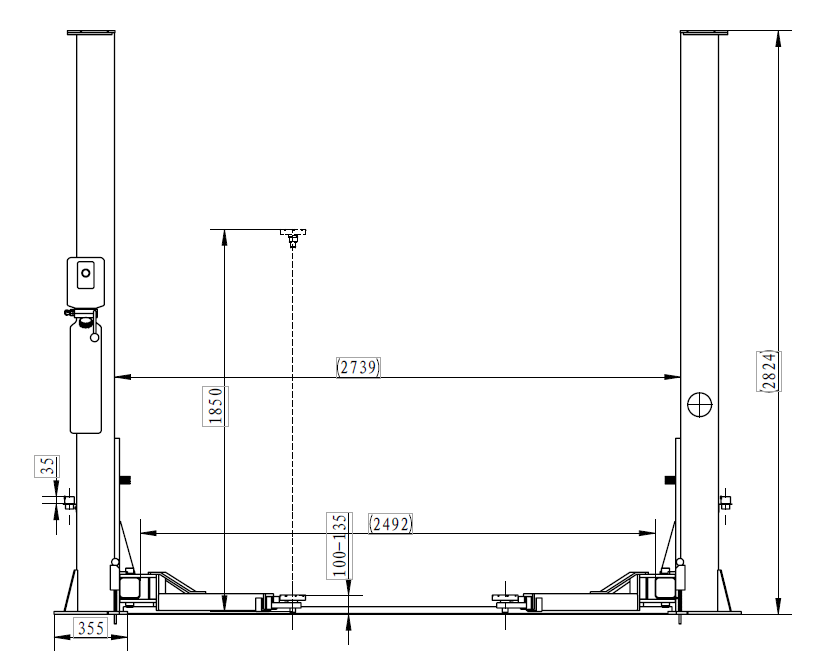

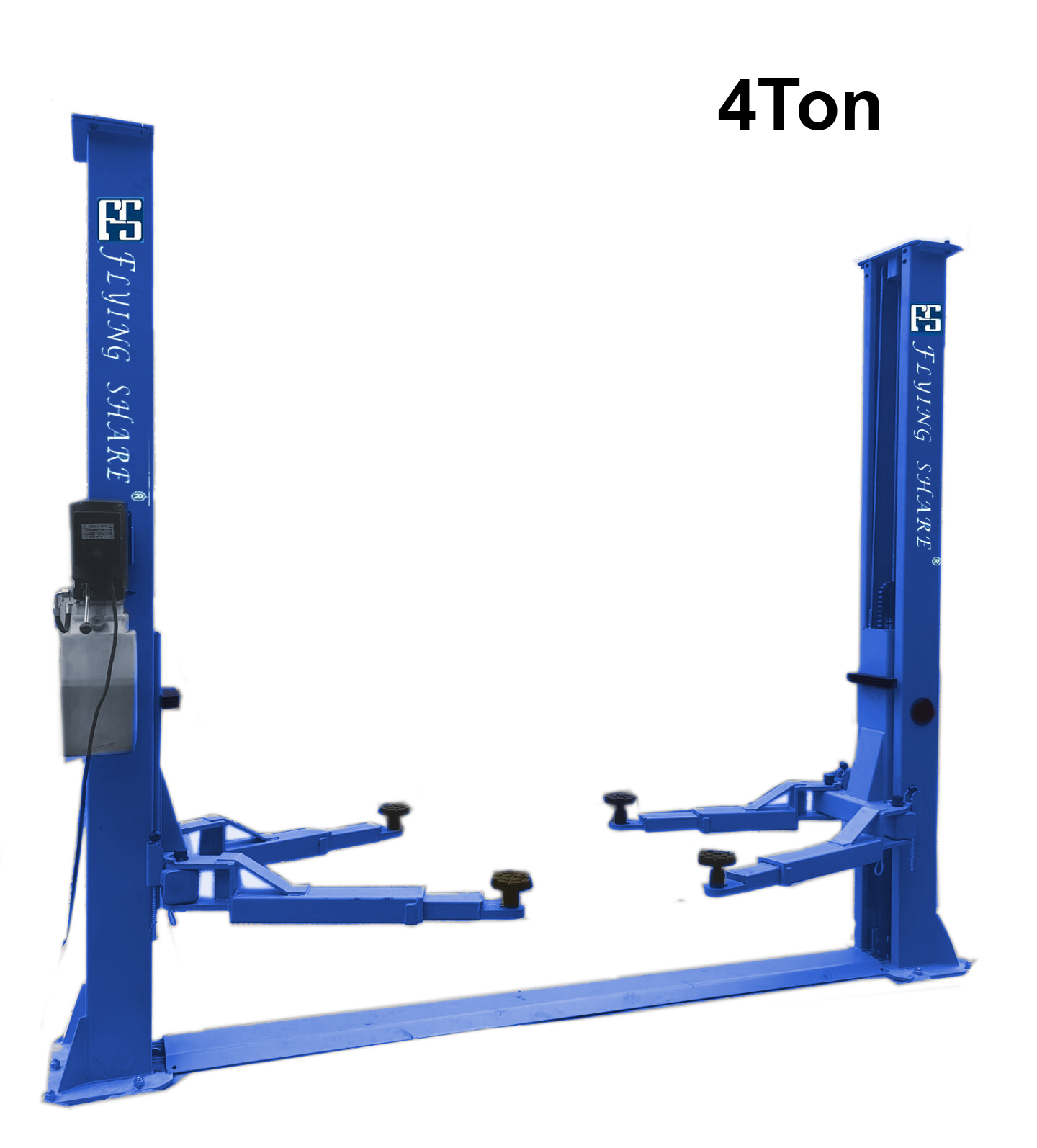

Lifting Capacity |
4.0 Ton |
|
Max. lift. height |
1850 mm |
|
Min. height |
100 mm |
|
Total height |
2824 mm |
|
Total width |
3325 mm |
|
Inside column |
2739 mm |
| Net weight |
530 kgs |
| Gross weight | 545 kgs |
